Illustration Tutorial: How to Draw the Human Body to Scale

Discover the keys to representing the human figure in architectural illustration, with Marcelo Marttins

In its most diverse forms, illustration can transform and expand our understanding of objects, people and of course, spaces.

Illustration is therefore a powerful way of representing architectural projects, as it helps humanize spaces and create a bridge between people.

Illustration can transform and expand our understanding of space.
Illustration can transform and expand our understanding of space.

Brazilian architect and urban planner, Marcelo Marttins (@marcelomarttins), aims to understand a space and convey its identity in every project.

In this tutorial, Marcelo teaches how to draw the human body using the scaling technique and following simple and easy steps.

Watch the video!

1. Start by sketching the head

Always start with the head. It will serve as your guide whenever you need to draw the human figure in architecture projects.

The dimensions of the head define the rest of your sketch: the human body measures seven heads long and more or less two and a half heads wide.

Start with the head when drawing a human in architecture projects.
Start with the head when drawing a human in architecture projects.

It’s also important to remember that every architect has their own style and way of including the human figure in their project drawings. So don’t worry about following a pattern. You’ll develop your own style in time.

Don’t miss these examples of the human figure drawn by famous architects.

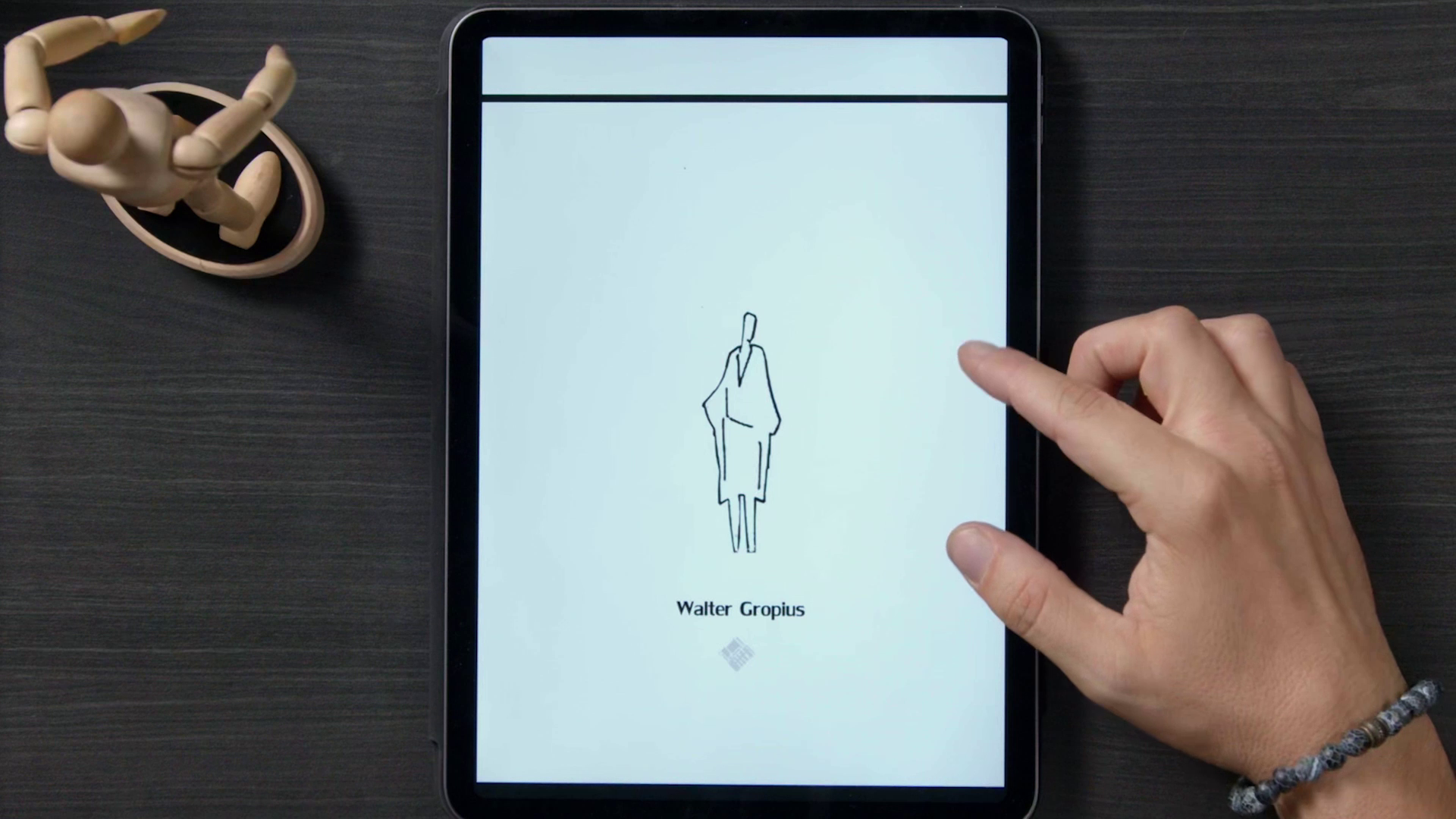

Figure by architect Walter Gropius.
Figure by architect Walter Gropius.

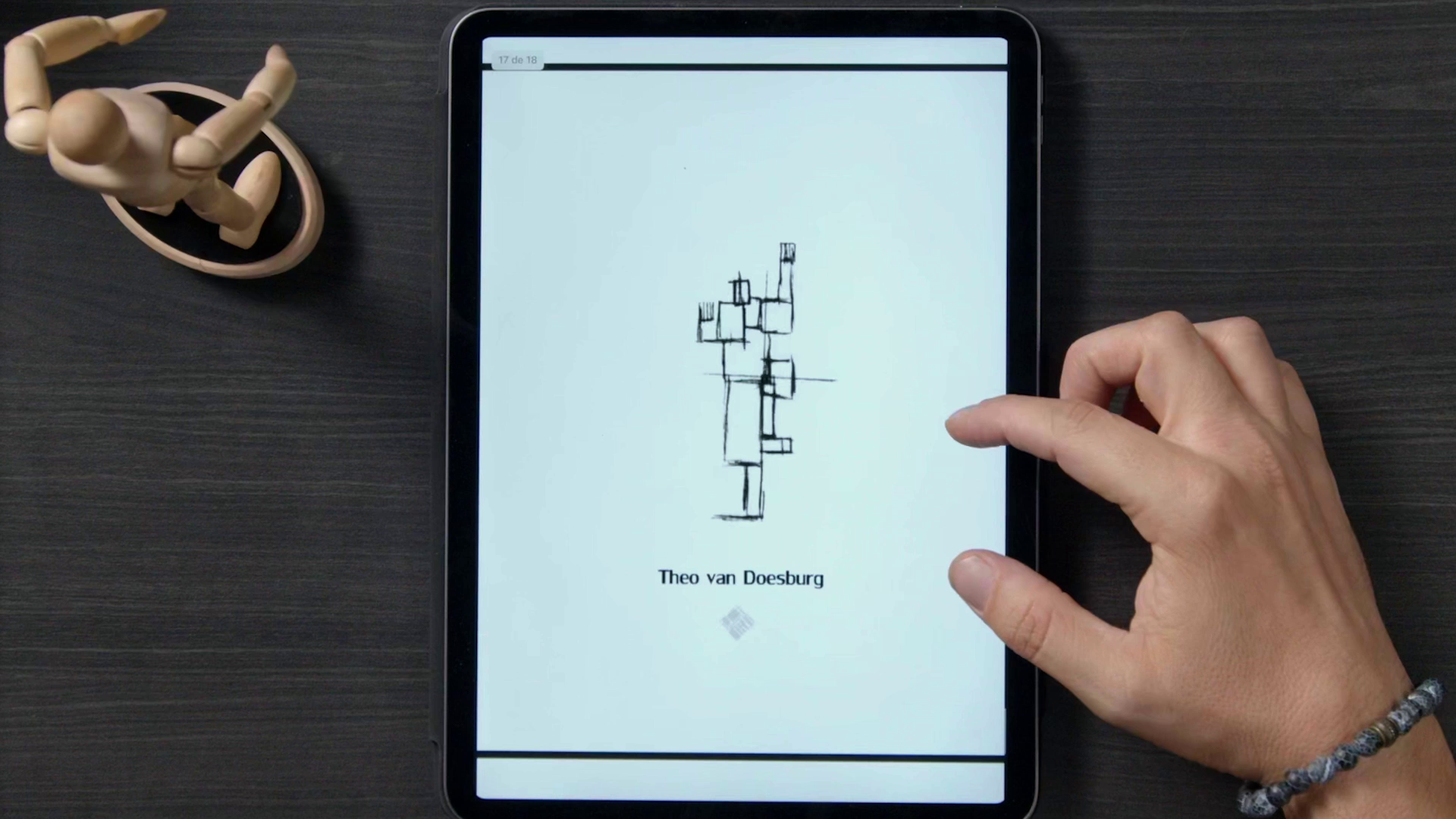

Figure by architect Theo van Doesburg.
Figure by architect Theo van Doesburg.

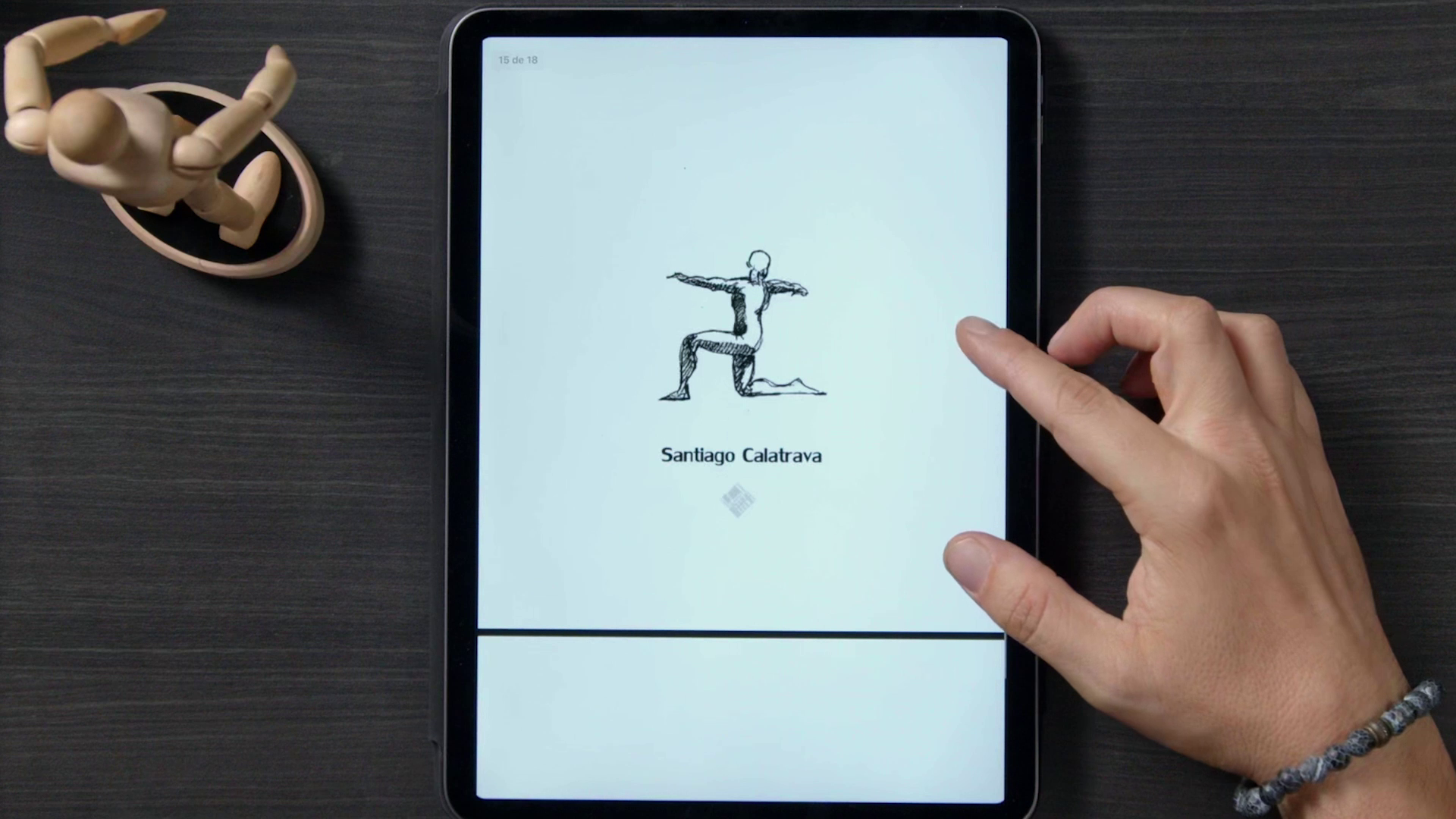

Figure by architect Santiago Calatrava.
Figure by architect Santiago Calatrava.

2. Scale things down to make things easier

You can use a wooden artist’s mannequin as your reference, then draw it using a scale division to help you. It’s best to start with seven sections, as shown here.

Use a seven part scale.
Use a seven part scale.

3. Place the parts of the body inside the scale

Copy each part of the body into the scale. Copying is easier to begin with, until you find your own way of drawing and representing the human body.

Copy each part of the body onto the scale.
Copy each part of the body onto the scale.

This exercise is also a good way to understand the joints, how they move and how you can use them to create movement. Don’t worry too much about aesthetics at this point. Your sketch doesn’t need to look nice, be perfect or very detailed at this stage. The key thing is to understand the concept.

Your sketch doesn’t need to be lovely, perfect or detailed.
Your sketch doesn’t need to be lovely, perfect or detailed.

4. The human figure draws attention to the scale of the project

It’s important to note that the human figure shouldn’t be the star of any architectural project (depending on your chosen style). It’s real function is to draw attention to your project’s scale.

Another good exercise is to sketch the person’s outline, with no details or shading. The following example focuses on the project. The person is included harmoniously and highlight’s the building’s scale and function.

Another good exercise is to sketch the person’s outline with no details or shading.
Another good exercise is to sketch the person’s outline with no details or shading.

Love this tutorial? If you want to learn how to convey the soul of a space using humanized drawing, and create an original hand-drawn architectural plan, don’t miss Marcelo’s online course: Architectural Illustration: Humanize the Design of a Space.
