Mi Proyecto del curso: Introducción al diseño e impresión en 3D
by Jesus Martinez Rodriguez @j_mtnez85
- 105
- 2
- 2

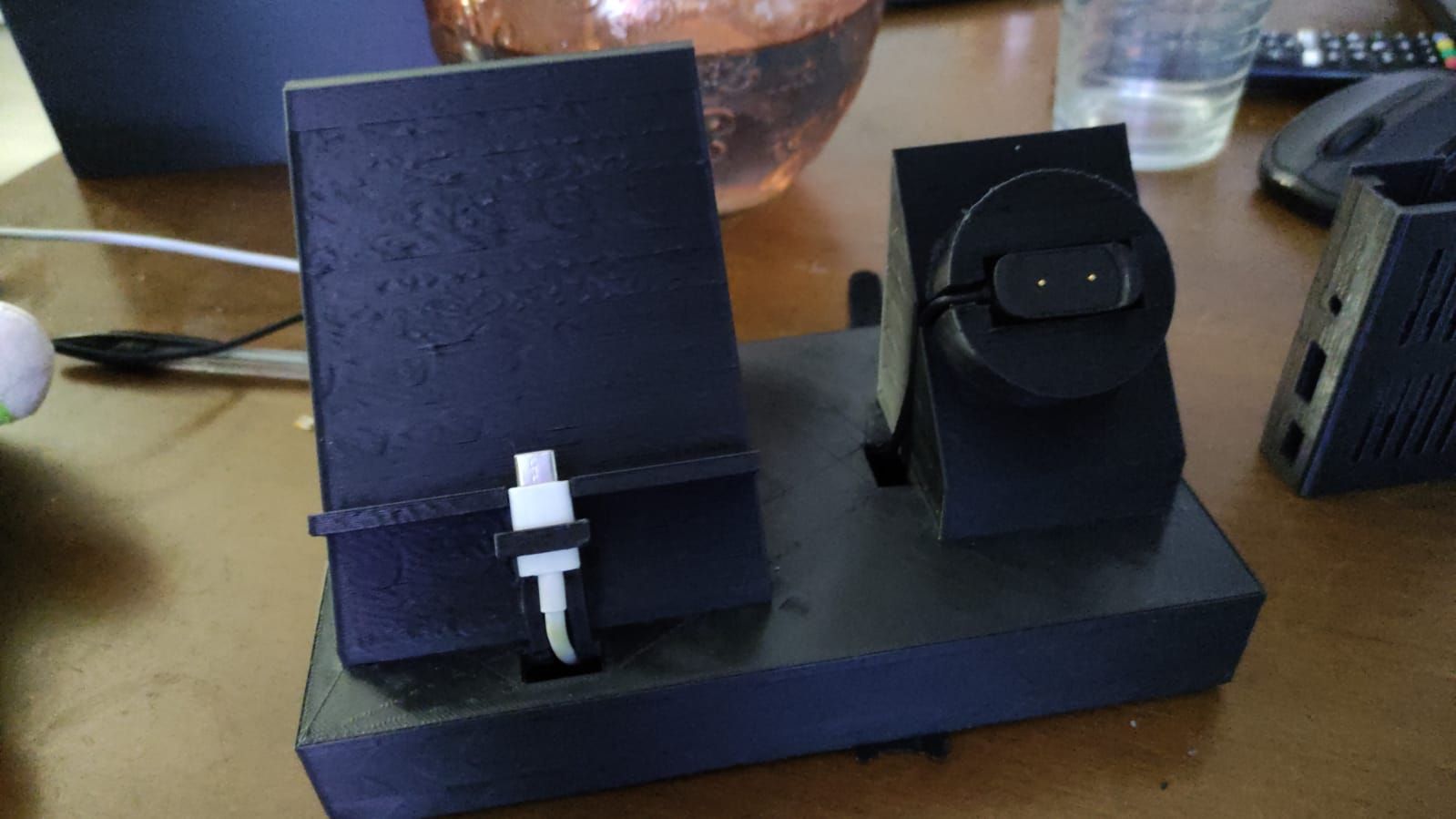

Se trata de una base de carga para un teléfono móvil y un Reloj Amazfit GTR.
Las ranuras están ajustadas pare que entren el conector magnético de carga del reloj y el cable USB-C para el smartphone, los cables pasarían a la parte de abajo de la pieza y saldrían por la ranura trasera hasta los enchufes en la pared.

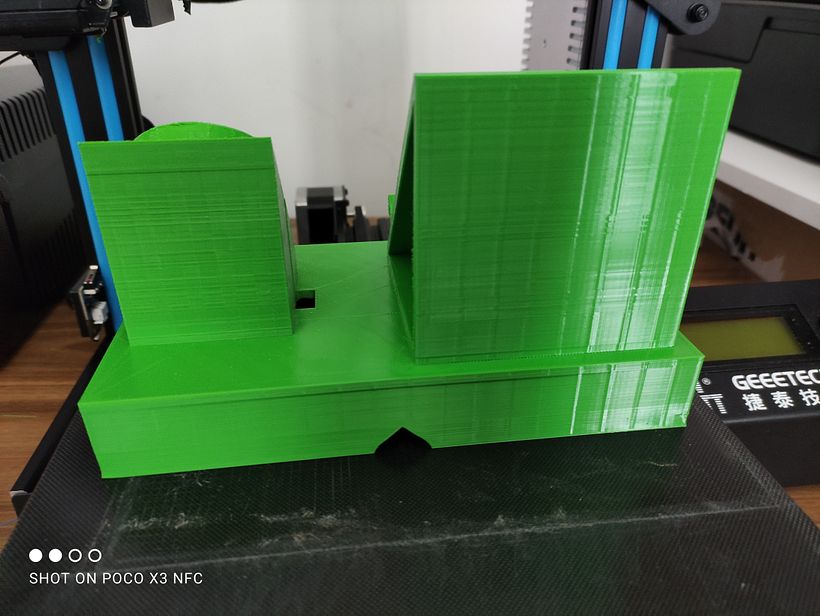

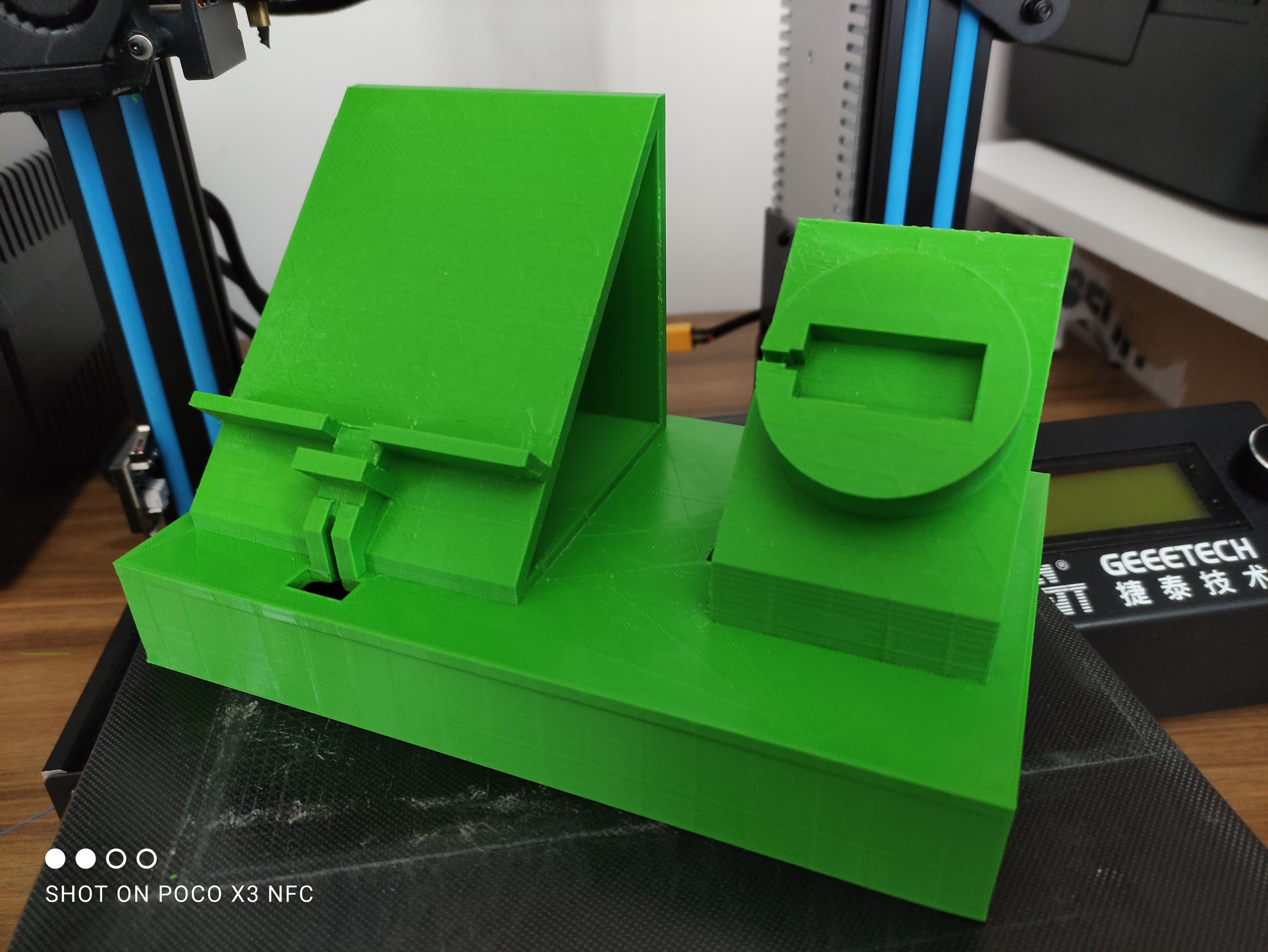

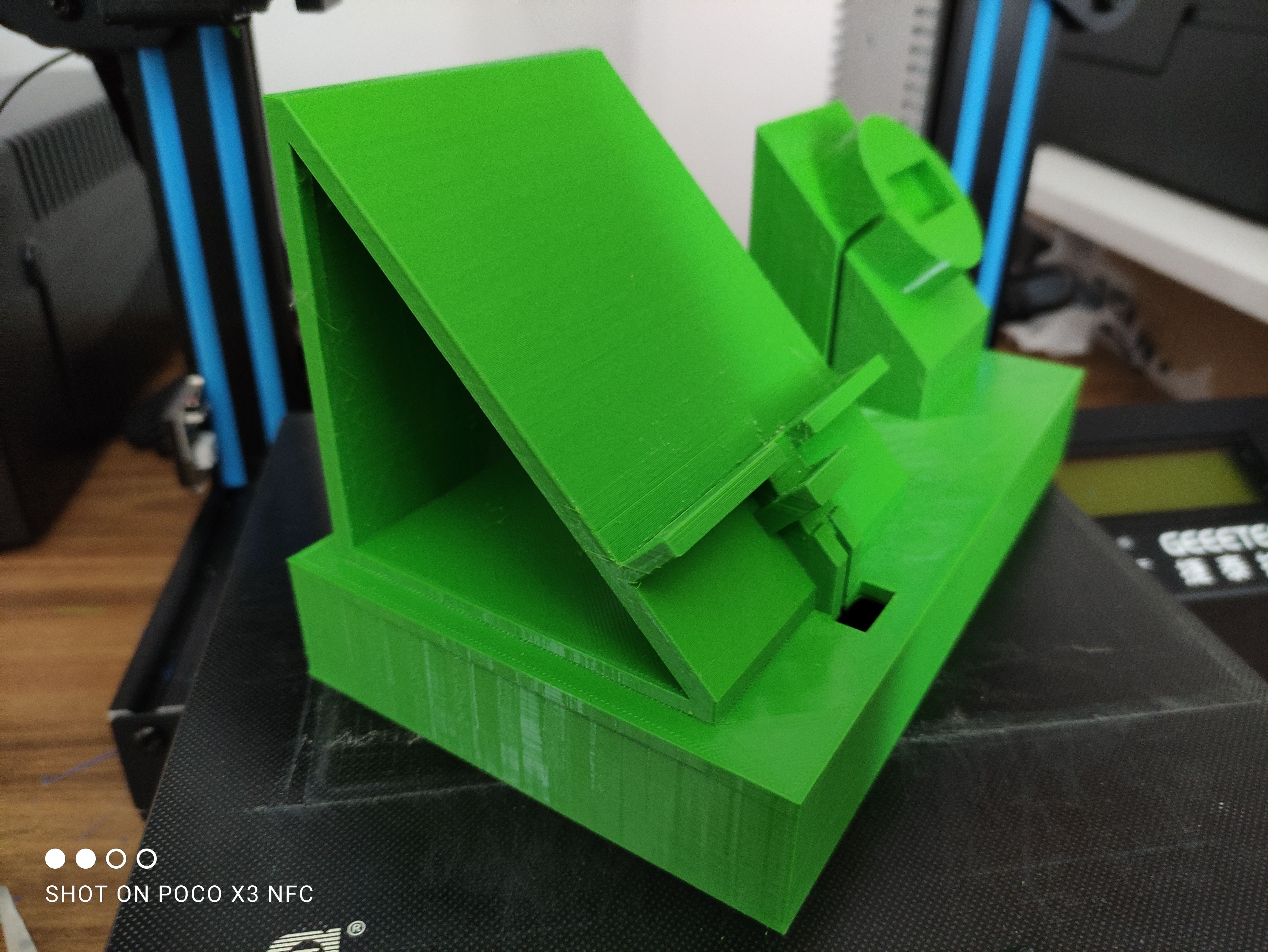

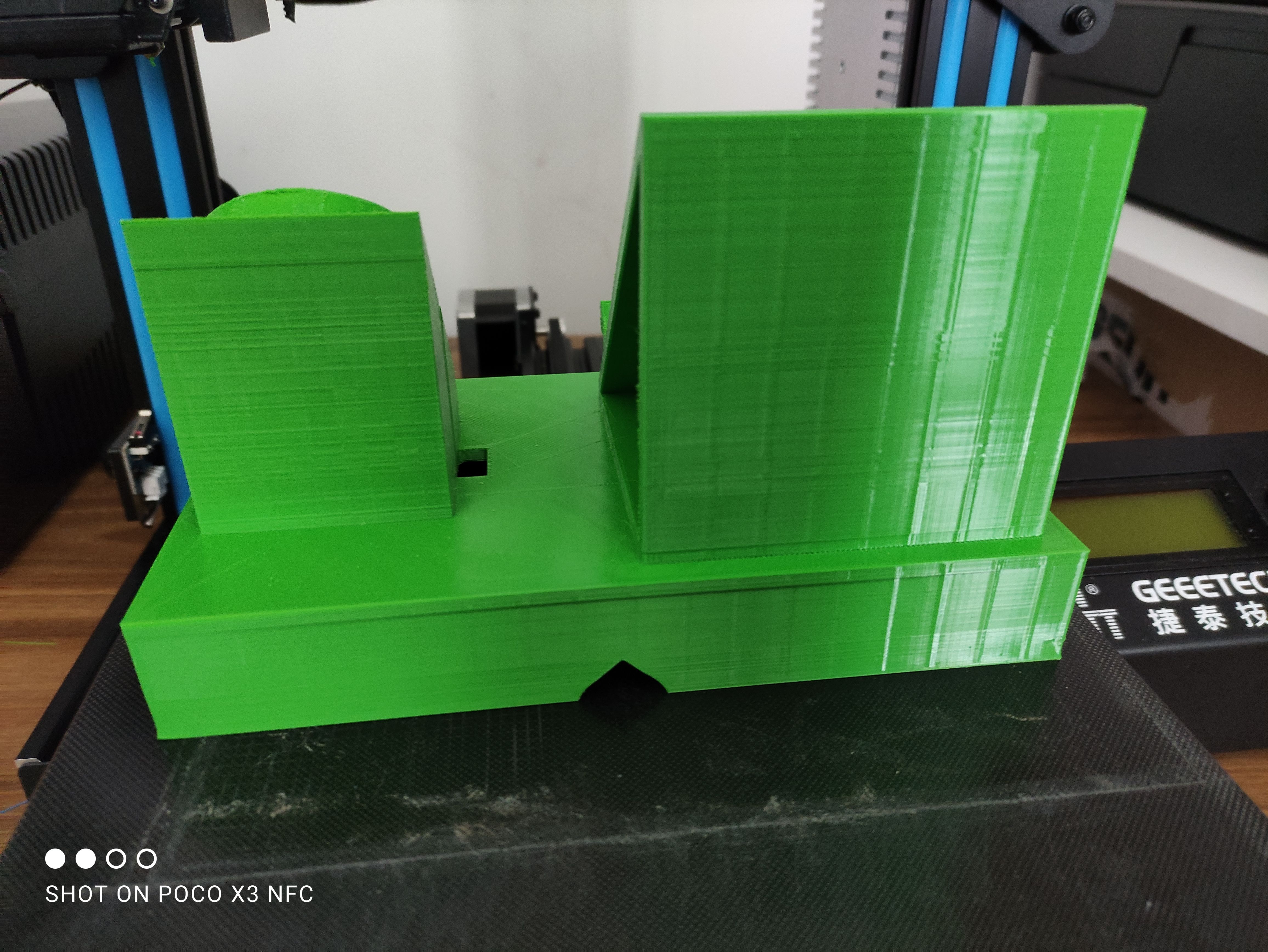

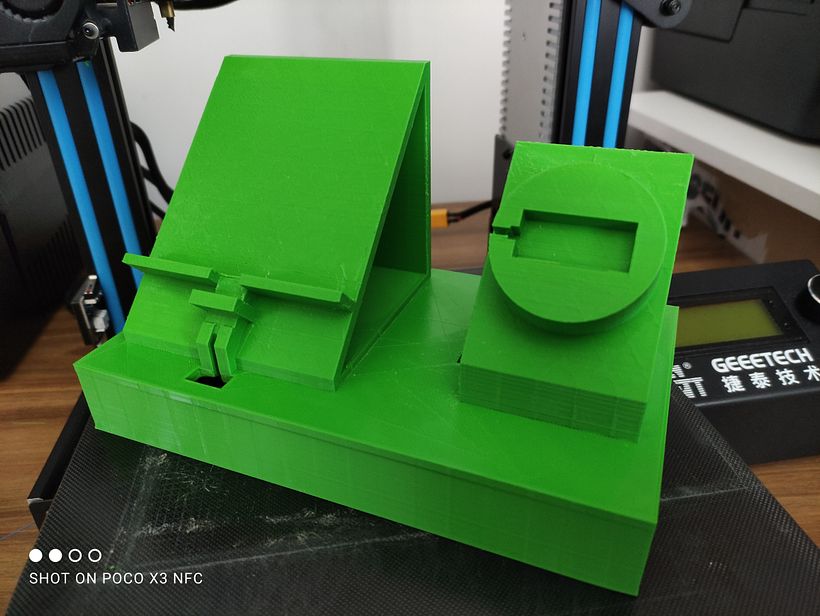

Evidentemente, el diseño es propio y realicé dos impresiones para probar distintas velocidades y alturas de capa y densidades de relleno.
2 comments
flowalistik
Teacher PlusI love the project!
Charging stations are one of the objects that can be customized the most, because each one has different habits.
I see the design as very resistant, what printing parameters have you used?
At the design level, I see it tremendously functional. The only thing I would recommend is adding some rounding to the edges to improve ergonomics. Also, depending on how you have placed the cables, the thickness of the base could be reduced, but I understand that just below the base you have hidden the cables.
See original
Hide original
j_mtnez85
Greetings:
In the final version, the areas where the cables pass are rounded to avoid possible sectioning of these, although in the images that I have uploaded it is not appreciated. It is true that I thought about reducing the size of the base, but the multi-charger I have needs that thickness to be effectively hidden.
The parameters used are the following:
Layer height: 0.2mm
Wall lines: 2
Wall thickness: 0.8mm
20% infill in gyroid mode
Print speed 60mm / s
Retract activated
Retraction distance: 6mm
Retraction speed: 35mm / s
Z-jump in active retraction
Generated support by touching plate with 50º angle
