Introduction to AutoCAD

Course 5: Blueprint Presentation: Graphic windows

By Alicia Sanz , Interior Designer.

Domestika Basics Course 5 of 5

Best seller

98% positive reviews (880)

55,151 students

Audio: Spanish, English

· · · · · · ·

About the video: Graphic windows

Overview

“In this unit I will explain how to create graphic windows and configure them to adapt them to our drawing. For example, how to make the same layers visible and invisible in different presentations.”

In this video lesson Alicia Sanz addresses the topic: Graphic windows, which is part of the Domestika online course: Course 5: Blueprint Presentation. Learn how to create and configure the presentation of your architectural project.

Partial transcription of the video

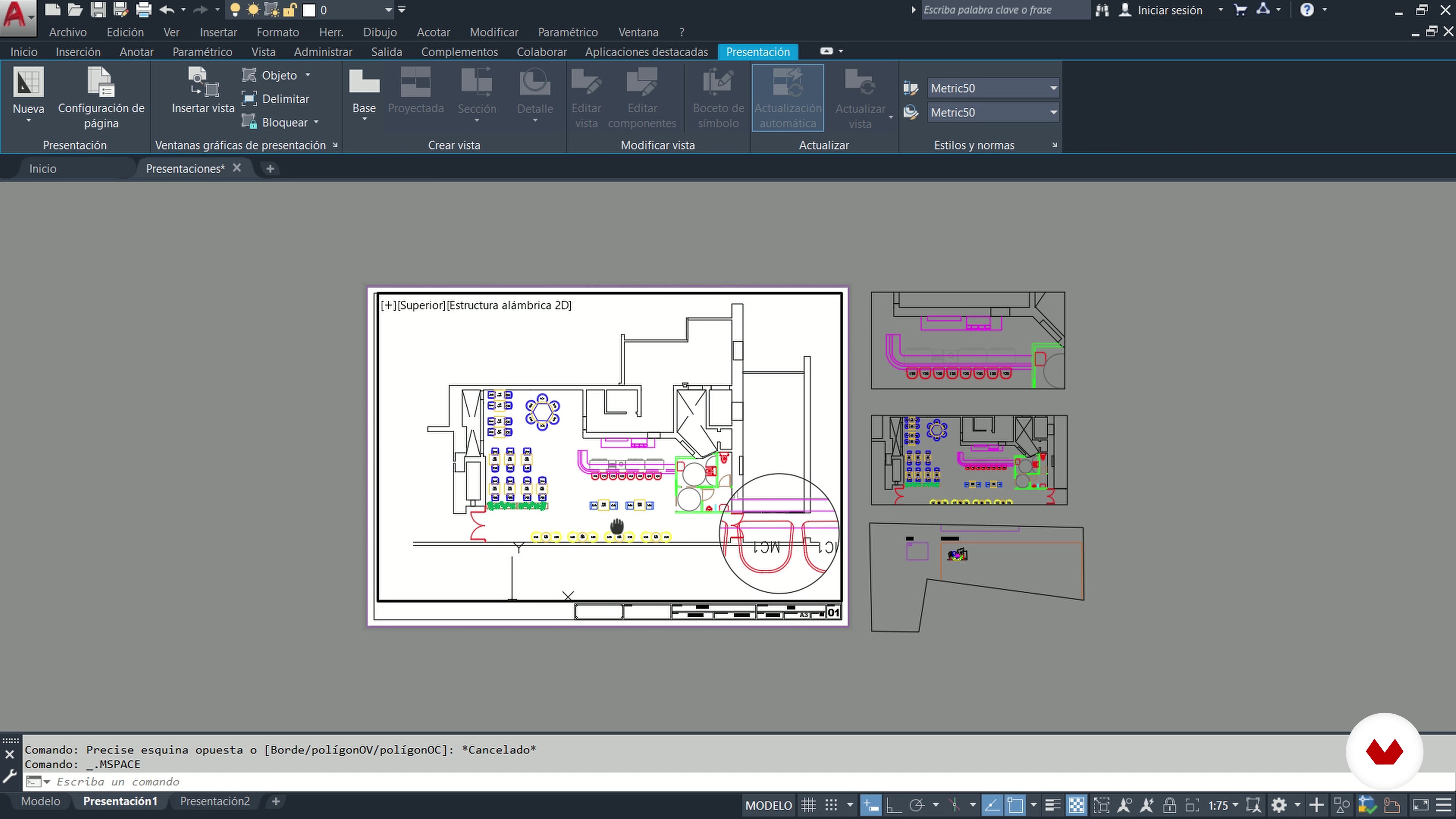

“AUTOCAD COURSE 5 LESSON 2 Viewports In this lesson we will see how to create viewports with different formats and scales to adapt them to our drawing. To create the graphic windows, we will go to the Presentation tab, that is illuminated while in the presentation space. If we agree, we see different options. We can create new presentations here. I can enter the page configurator, clicking on the presentation tab and we go to the next tab that shows the different window options. We have four options for creating windows. We can do it from model space by giving it here, Insert view. It allows...”
