Mi Proyecto del curso: Introducción al dibujo arquitectónico en AutoCAD
Mi Proyecto del curso: Introducción al dibujo arquitectónico en AutoCAD
by Arq. Yócelyn Soto Miranda @arqyocelynsm
- 151
- 0
- 4
4 comments
isabelmabascal
Teacher PlusHi Yócelyn,

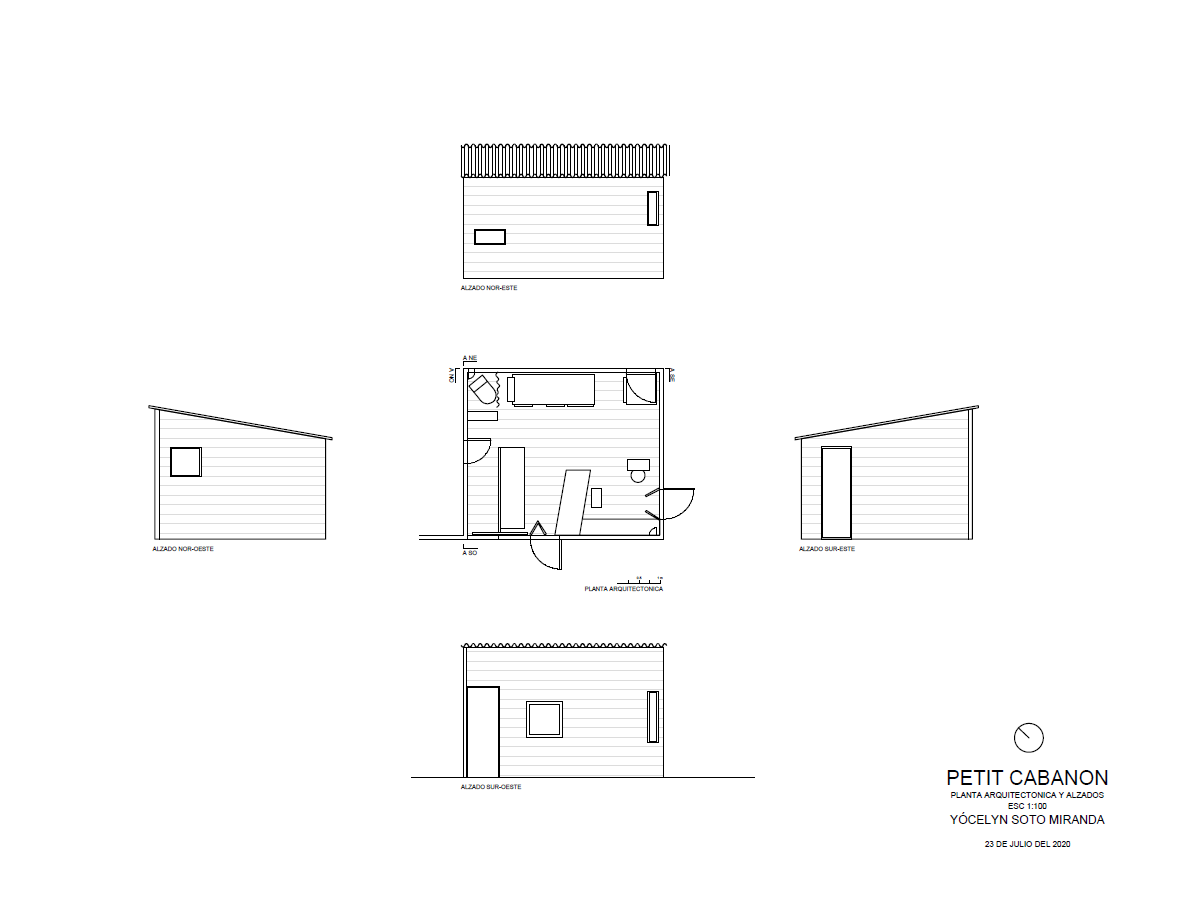

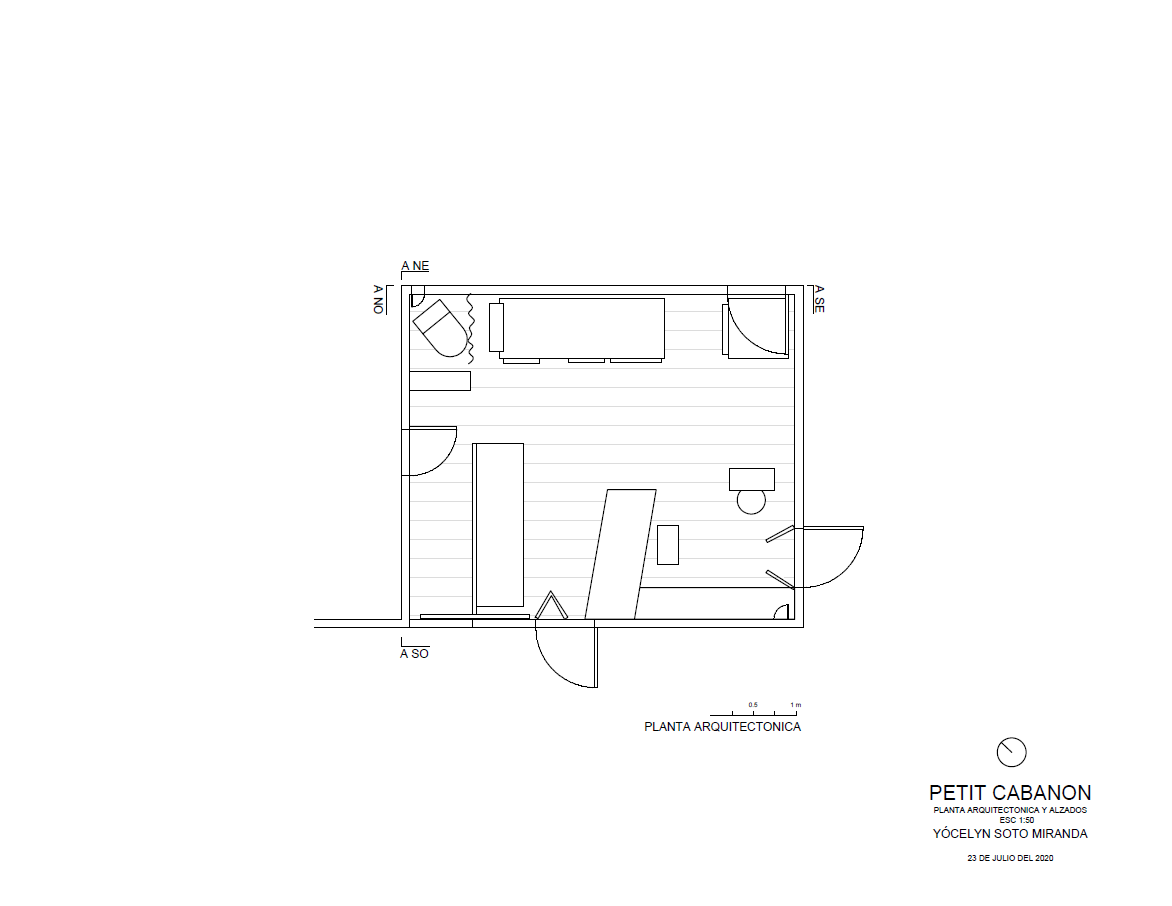

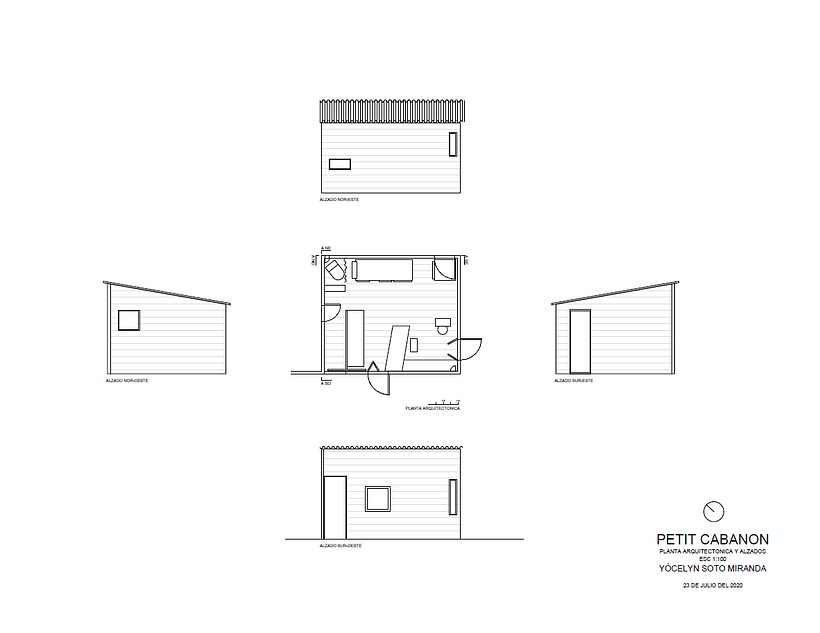

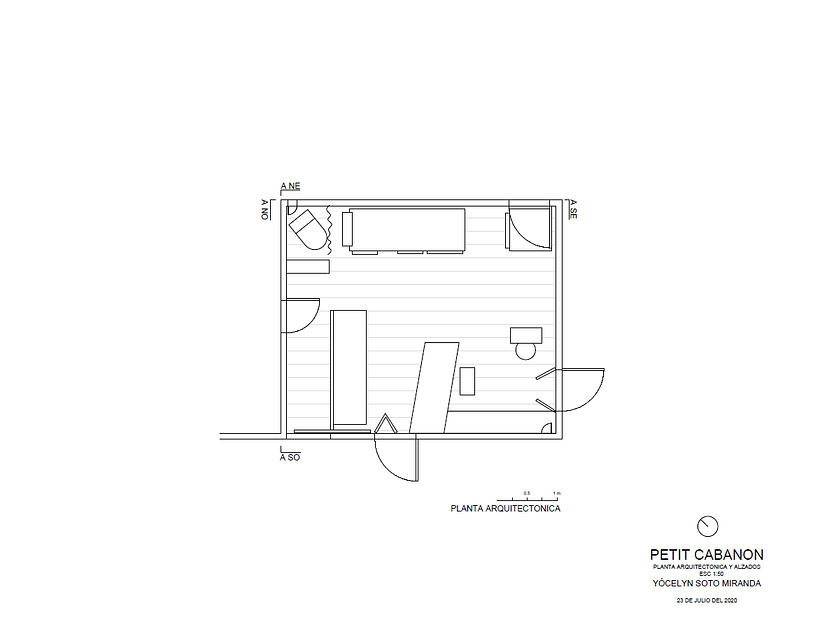

The drawings you have made are generally fine. You can lower the Linetype Scale or Linetype Scale of your dotted or dashed lines to make it look better. It would also make the floor hatch more dense.
You need to delimit the Plan and draw the interior year and three elevations.
I'll leave that for homework.
Cheers!
arqyocelynsm
@isabelmabascal thank you very much, what happened is that I have AutoCAD 2021 for Windows and I did not find the tool to use it, where could I look for that information?
isabelmabascal
Teacher PlusHi,
you can limit by typing the command DIM in English or DIM in Spanish.
arqyocelynsm
Ready I already corrected it, it was to solve the print settings ...
